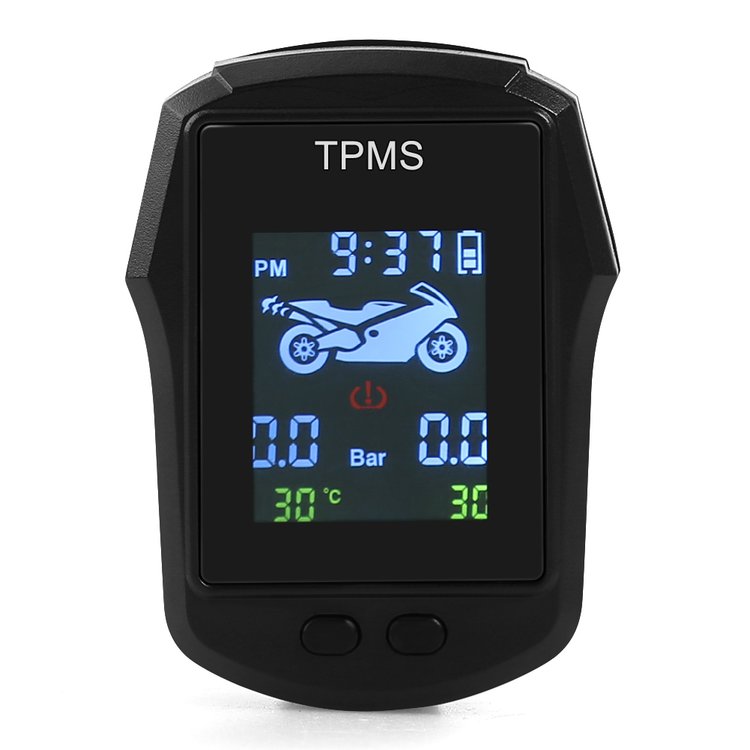

Waterproof Motorcycle TPMS Electric Bike Tire Tyre Pressure Monitoring System with External Sensors

Waterproof Motorcycle TPMS Motorbike Electric Bike Tire Tyre Pressure Monitoring System with External Sensors

Feature

• Clear display strong light;
• Convenient installation;
• Replaceable battery;
• Long service life;
• All-round waterproof.
• Specification
• Material: ABS + PC
• Body color: black
• Voltage: 5V
• Size: 50 * 50 * 28mm/1.97*1.97*1.10"
• Receiver frequency: 433.92MHz
• Receiving sensitivity: 110-110dBm
• Working temperature range: -20℃~+75℃
• Pressure alarm value: 0.3-6.2bar (5-90psi)

Sensor

• Working temperature: -30℃~+80℃
• Pressure monitoring range: 0-8bar (116psi)
• Pressure accuracy: 0.0.1bar (1.5psi)
• Precision temperature sensor: ±3℃
• Transmitting power: <10dbm
• Transmission frequency: 433.92MHz
• Size: 21x17x17mm/0.83x0.66x0.66" (height * diameter)
• Battery model: CR1632, replaceable
• Battery life: 2 years (1-2 hours per day, normal travel time)

Bracket installation

1. Unscrew the 2 screws, put on the motorcycle/electric bike/bicycle, and tighten;
2. Place the mounting head of the bracket toward the position you need, and confirm that the bracket is firm;
3. Install the tire pressure receiver on the bracket, tighten and then lock;
4. Move the joints by rotating the tuning knob of the ball head to adjust the appropriate angle appropriately.

Package Included

• 1 X Receiver
• 1 X Usb Cable
• 1 X Bracket
• 2 X Sensors
• 1 Set X Parts
• 1 X Manual

Note

• There may be slight size deviations due to manual measurement, different measuring methods, and tools.
• The picture may not reflect the actual color of the item because of different photographing light, angle, and display monitor.
