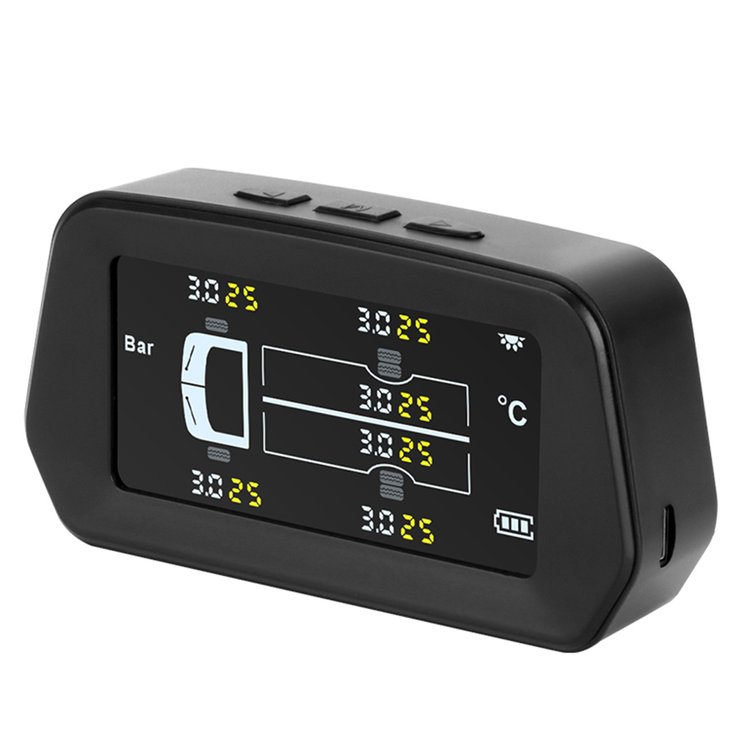

Solar Truck TPMS Tire Pressure Monitoring System with 6 External Sensors

Type-

0-8.0 Bar

0-13.0 Bar

$108.99

$219.98

-50%

Quantity

Free returns

Sustainably made

Secure payments

Description

Solar Truck RV TPMS LCD Color Display Tire Tyre Pressure Monitoring System with 6 External Sensors

Specification

Receiver

Working voltage: 3.7-5V
Display mode: LCD color screen
Working current: <13mA
Working temperature: -20~+80 ℃
Storage temperature: -20~+85 ℃
Shutdown current: <0.7mA
Power-on voltage: DC 5V
Receiving frequency: 433.92MHz±20.00MHz
Signal receiving sensitivity: -90dbm

Sensor

Battery life: 24 months
Storage temperature: -20~+85 ℃
Working voltage: 2.1V-3.3V
Working temperature: -20~+85 ℃
Pressure range: 0~13.0 Bar
Pressure accuracy: ±0.1 Bar
Temperature accuracy: +/-3℃
Transmitting power: <15dBm
Transmitting frequency: 433.92MHz±20.00MHz

Package Content

1 Set X TPMS

Note

There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
